Springboot整合mybatis

本文最后更新于：2023-03-13, 23:48:50

继上篇 Springboot整合Druid 之后，下面继续记录一下Springboot整合mybatis的过程。

1、引入依赖

1
2
3
4
5
<dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.2</version>
</dependency>

2、建表

1
2
3
4
5
6
7
8
9
10
11
12
13
14
CREATE TABLE `wx_message`
(
    `id`                  bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
    `msg_id`              bigint(20) NOT NULL unique  COMMENT '消息ID',
    `user_id`             varchar(64) NOT NULL DEFAULT '' COMMENT '用户ID(一个OpenID)',
    `msg_type`            varchar(64) NOT NULL DEFAULT '' COMMENT '消息类型',
    `receive_msg`         varchar(2048)  NOT NULL DEFAULT '' COMMENT '收到的消息',
    `response_msg`        varchar(2048)  NOT NULL DEFAULT '' COMMENT '回复的消息',
    `create_date`         datetime NOT NULL  COMMENT '创建时间',
    PRIMARY KEY (`id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8mb4
  COLLATE = utf8mb4_unicode_ci COMMENT ='公众号微信消息';

3、创建实体类

1
2
3
4
5
6
7
8
9
10
public class WxMessage {
    private long id;
    private long msgId;
    private String msgType;
    private String userId;
    private String receiveMsg;
    private String responseMsg;
    private Date createDate;
    //省略getter和setter
}

4、创建mapper接口

1
2
3
4
5
6
public interface WxMessageMapper {

    List<WxMessage> findAll();

    int insert(WxMessage message);
}

5、在resources目录下创建WxMessageMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zahi.hrms.employee.mapper.WxMessageMapper">
    <select id="findAll" resultType="WxMessage">
        select * from wx_message
    </select>

    <insert id="insert" parameterType="WxMessage">
        insert into wx_message (msg_id, user_id, msg_type, receive_msg, response_msg, create_date)
                        values (#{msgId}, #{userId}, #{msgType}, #{receiveMsg}, #{responseMsg}, #{createDate} )
    </insert>

</mapper>

注意：

(1) 这个文件的名字和上面的mapper接口的类名一致

(2) namespace是上面mapper接口的全限定类名

(3) select / insert等标签的id要和mapper接口里的方法名一致

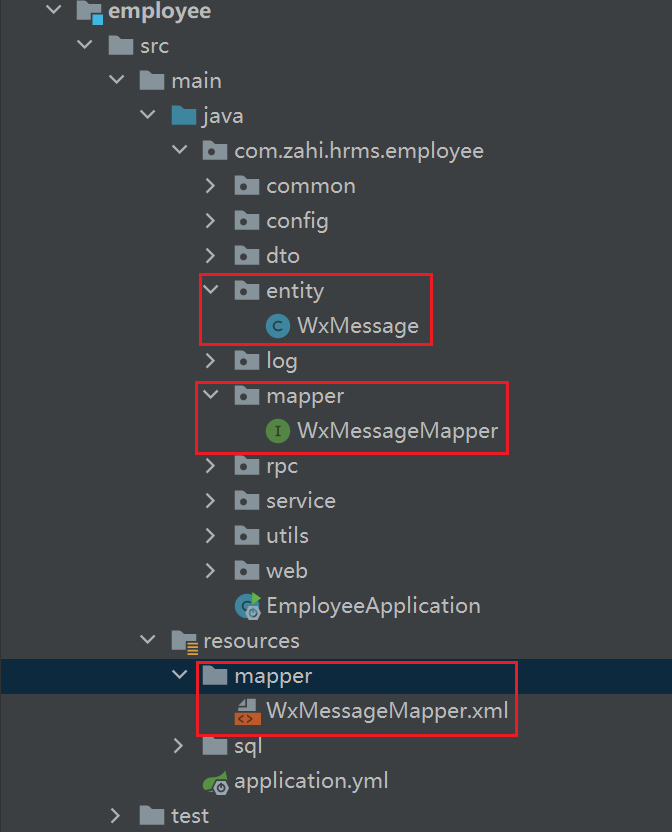

ps：到现在主要目录结构如下

目录结构

6、在启动类里面添加MapperScan注解，扫描所有mapper接口

1
2
3
4
5
6
7
@SpringBootApplication
@MapperScan("com.zahi.hrms.employee.mapper")
public class EmployeeApplication {
    public static void main(String[] args) {
        SpringApplication.run(EmployeeApplication.class, args);
    }
}

7、在application.yml添加配置

1
2
3
4
5
6
7
8
#mybatis的相关配置
mybatis:
  #mapper配置文件
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.zahi.hrms.employee.entity
  #开启驼峰命名
  configuration:
    map-underscore-to-camel-case: true

ps：配置type-aliases-package之后，上面的WxMessageMapper.xml里面的resultType和parameterType就可以只写类名，不用写全限定类名了。


END
